Peplink MAX HD1 Dome review

Peplink MAX HD1 Dome | Rugged Outdoor IP67 | Single Cellular Router for Mobile Deployments| 2X2 MIMO, GPS Receiver, 2X SIM Slots, CAT-18 | MAX-HD1-DOM-M-GLTE-G

Connectivity Technology	Ethernet
Brand	Peplink
Compatible Devices	Router, Switch, SIM Injector
Control Method	Remote
Number of Ports	1
LAN Port Bandwidth	10/100 megabits_per_second
Data Transfer Rate	1.2 Gigabits Per Second
Antenna Type	Internal
Controller Type	Switch

About this item

• 1x Embedded LTE WAN Modems with Redundant SIM slots
• 1x 10/100/1000M 802.3at PoE Input. With Ethernet Splitter, the Ethernet LAN port can be split into two LAN ports (1x LAN 802.3af PoE out, 1x LAN 802.3at PoE in) | Power Consumption: 20W (max.)
• Downlink/Uplink Datarate: 1.2Gbps/150Mbps
• Single Cellular in an IP67 enclosure that has a minimum profile on the rooftop while providing a maximum signal with minimal cable loss
• Antennas: 4x4 Internal MIMO Cellular Antennas, 1x Internal GPS Antenna
• Certifications: FCC, CE, RoHS, Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
• HD1/2 Dome is compatible with the Premium Deck Mounts: ACW-650, ACW-651, ACW-652. These mounts are made from the highest quality Marine Grade Stainless Steel to withstand harsh weather conditions and prevent corrosion at sea.
• Package Content: MAX HD1 Dome, Ethernet Splitter, 2x Waterproof Ethernet Connector, Mounting Kit Set
• US Carrier Certifications: Verizon, AT&T, FirstNet, T-Mobile, US Cellular.

Product Description

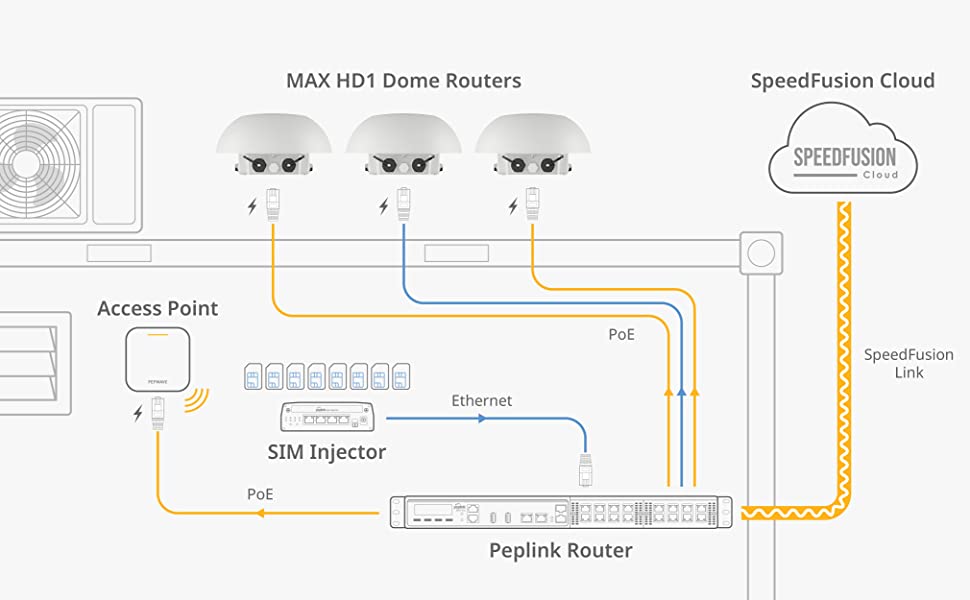

The HD1 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing a maximum signal. With redundant SIM, the HD1 Dome supports single cellular radios and two SIM cards. Combine the HD1 Dome with the SIM Injector, and the number of cards increases to ten.

What's in the box

MAX HD1 Dome, Ethernet Splitter, 2x Waterproof Ethernet Connector, Mounting Kit Set

Product information

Brand	‎Peplink
Item model number	‎MAX-HD1-DOM-M-GLTE-G
Item Weight	‎3.75 pounds
Product Dimensions	‎4.33 x 4.33 x 4.53 inches
Item Dimensions LxWxH	‎4.33 x 4.33 x 4.53 inches
Manufacturer	‎Peplink
ASIN	‎B09RK1YF83
Country of Origin	‎Taiwan
Date First Available	‎January 30, 2022
